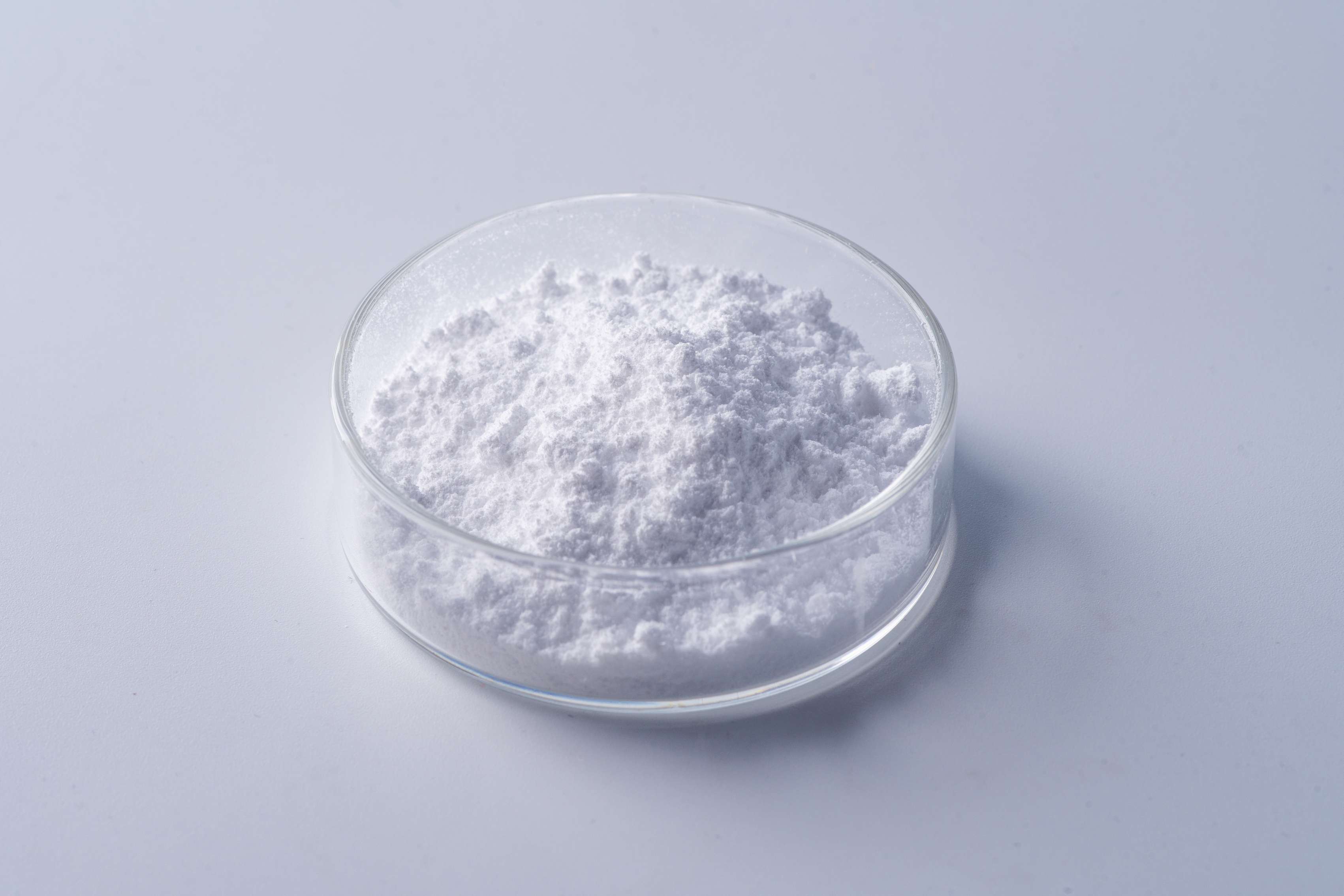

ETFE EC-04
as the strongest fluorine plastic. with extremely good chemical resistance, weather resistance and immoderate mild transmission.weather resistance and immoderate mild transmission, ultraviolet and visible areas.
The index as follows
Item | Unit | EC-04 |
Melt mass flow rate | g/10min | 19.1～30.0 |
Bulk density | g/ml | 0.60-0.90 |
Median particle size | μm | 60-100 |
Melting point | ℃ | 250-270 |
Tensile strength | MPa | ≥40 |
Elongation at break | % | ≥350 |
Volatile fraction | % | ≤0.10 |
Dielectric constant | 106HZ | ≤2.7 |
Dielectric loss factor | 106HZ | ≤0.009 |
Standard relative density | 1.71～1.76 |
Packaging and transportation

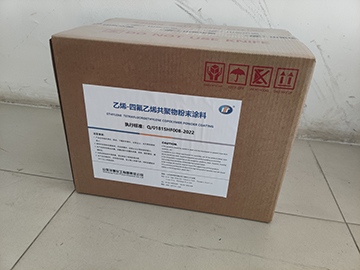

The product must be packed in double plastic luggage, in inflexible barrels.
Non-risky objects transportation, the transportation system need to keep away from moisture, heat, violent vibration, collision and strain, to forestall material agglomeration.
Manufacturing facility strength
Manufacturing capacity: 2000 tons/year
Complete product line, can furnish more than a few color matching, clear category, real application carrier, can customise merchandise according to client desires
